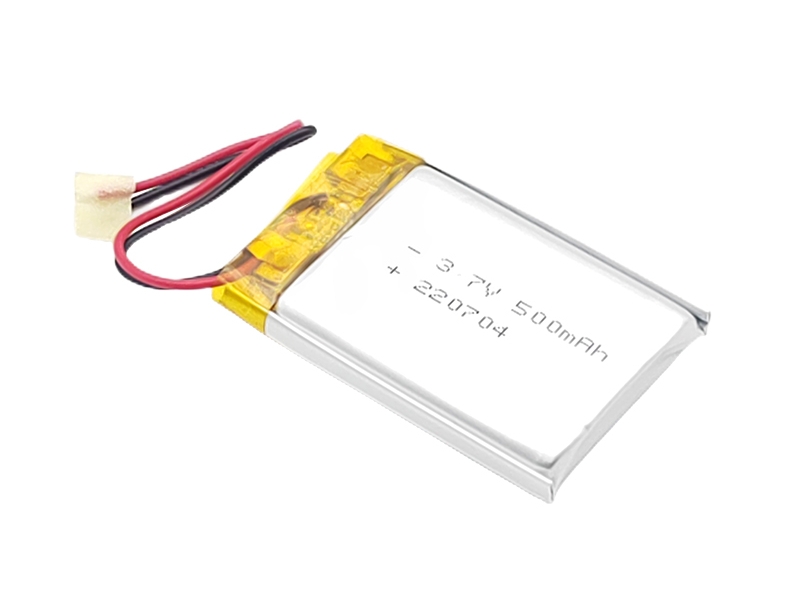

3.7V polymer lithium battery Product model: XL 3.7V 500mAh
3.7V polymer battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
Single battery model: 602535


· Single battery voltage: 3.7V
· Nominal voltage after the battery pack is assembled: 3.7V
· Single battery capacity: 500mAh
· Battery combination: 1 string and 1 parallel
· Battery voltage range after combination: 3.0V~4.2V
· Battery capacity after combination: 500mAh
· Battery pack power: 1.85W
· Battery pack size: 6*25.5*38mm
· Maximum discharge current: <0.5A
· Instantaneous discharge current: 1.0A~1.5A
· Maximum charging current: 0.2-0.5C
· Charge and discharge times: >500 times
 · Main chip: (Seiko, TI)

3.7V polymer lithium battery
· Comply with relevant national standards and requirements for batteries
· All finished battery products have been calibrated and tested before leaving the factory. They can be used directly
